• Manual Link：Here

• Overview of 8-channel Artnet node network controller

About this item

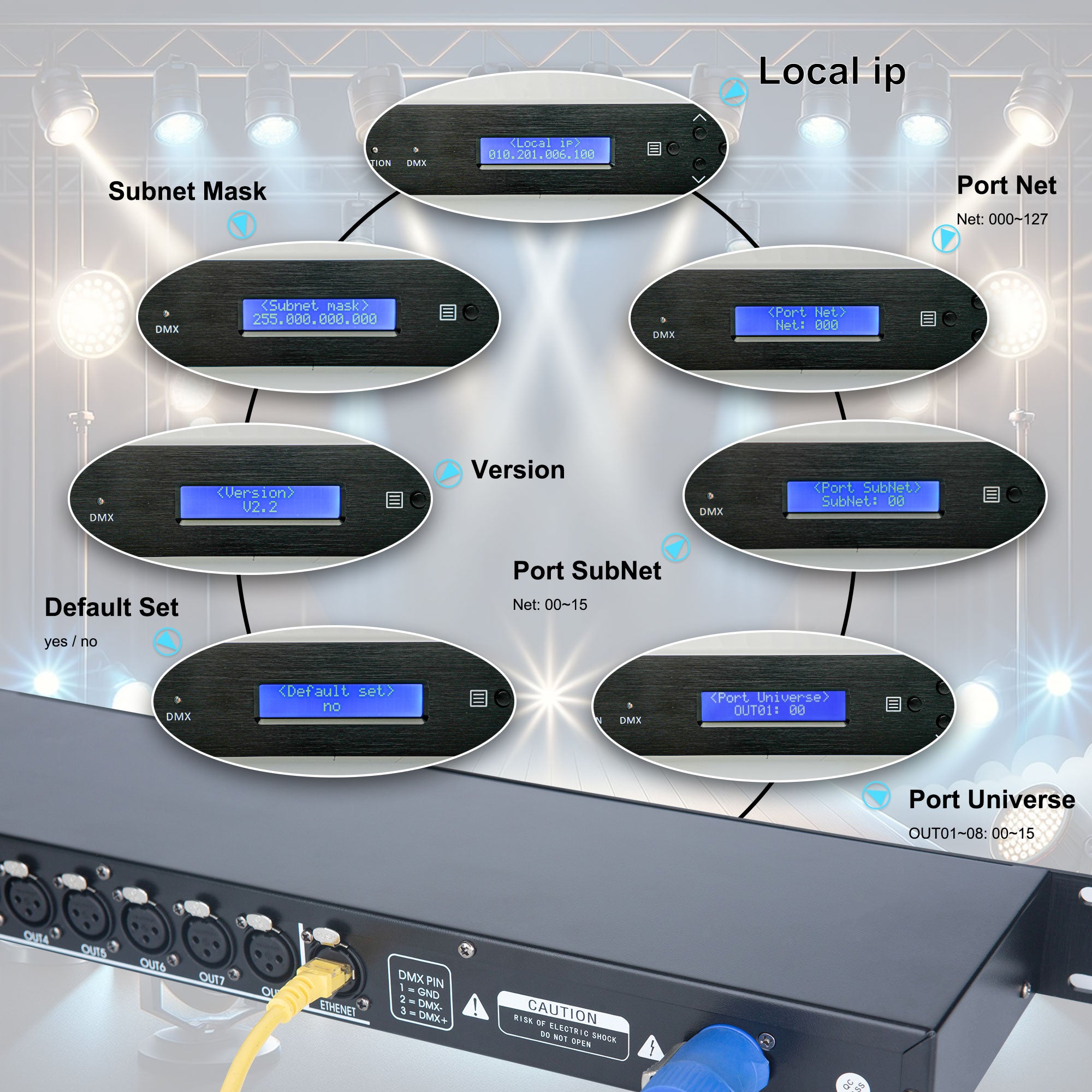

• Advanced ArtNet-4 Integration: The ArtNet controller offers extensive customization through Net, Subnet, and Universe settings, capable of managing up to 32,768 DMX channels. It's perfect for large-scale events and complex lighting scenarios, providing exceptional scalability and flexibility.

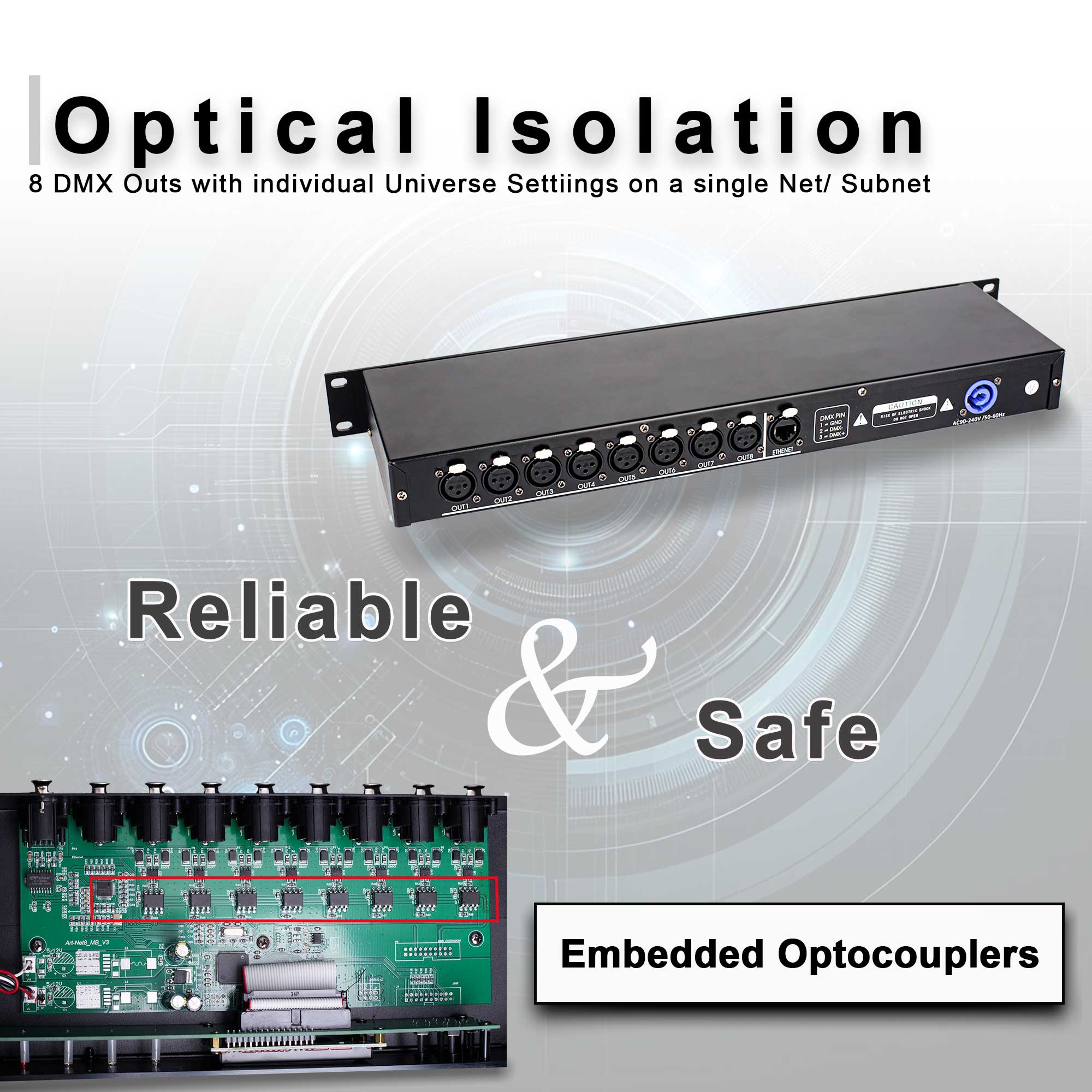

• All XLR Outputs Opt-Isolated:Eight XLR ports feature optical isolation chips, effectively blocking electrical currents from connected fixtures to protect your control system. This ensures reliable signal integrity and shields your equipment from electrical interference and surges, providing strong protection for your entire setup.
• Comprehensive DMX Channel Control: This 8-channel ArtNet to DMX controller allows for precise management of extensive lighting arrays, ideal for sophisticated stage designs that require detailed synchronization and dynamic effects.

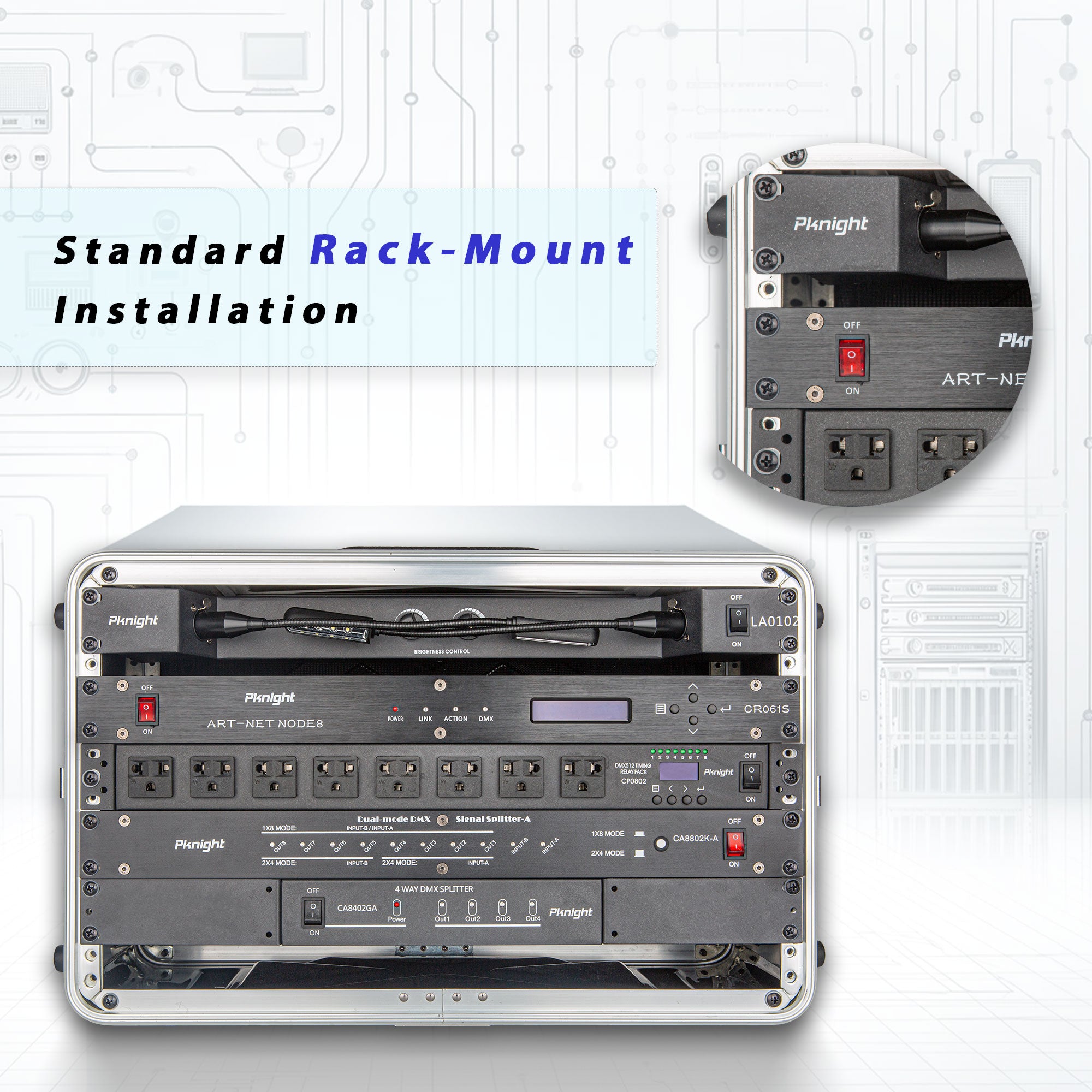

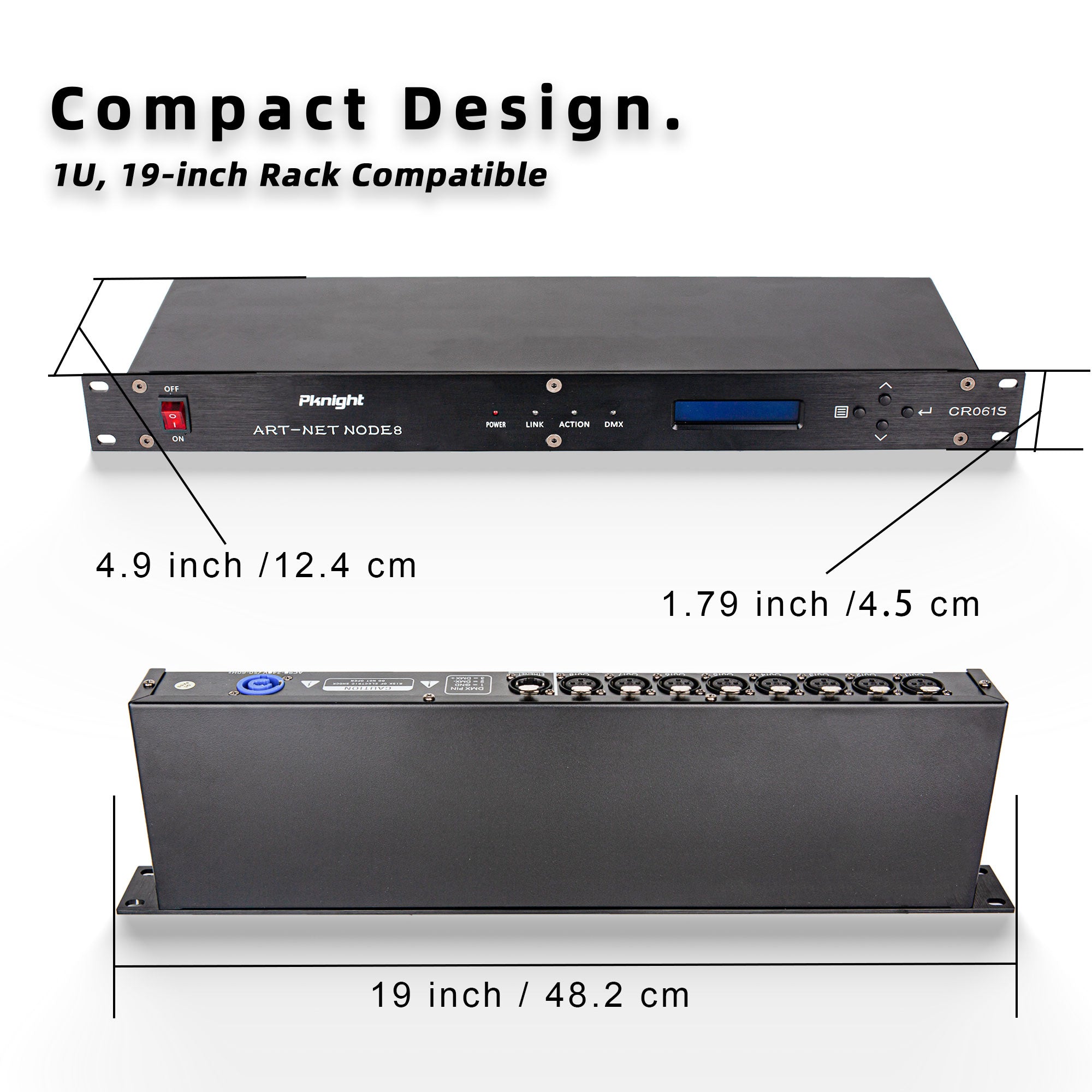

• Compact Rack-Mount Design: Designed to fit seamlessly into a standard 19-inch, 1U high rack, this controller integrates effortlessly into both live performance and studio setups. Its modular design also eases installation alongside other audio equipment.
• Direct Configuration Capabilities: Equipped with an LCD and straightforward control buttons, this unit enables quick onsite adjustments to network settings, enhancing maintenance and operational efficiency.
• Highly Configurable Outputs: Each of the 8 DMX outputs is independently adjustable, allowing for precise universe settings within a unified Net/Subnet framework.
• Durable and Economical: Built to withstand rigorous use, this ArtNet controller offers lasting reliability and low maintenance costs, making it a cost-effective choice for both fixed installations and touring shows.

Product Description

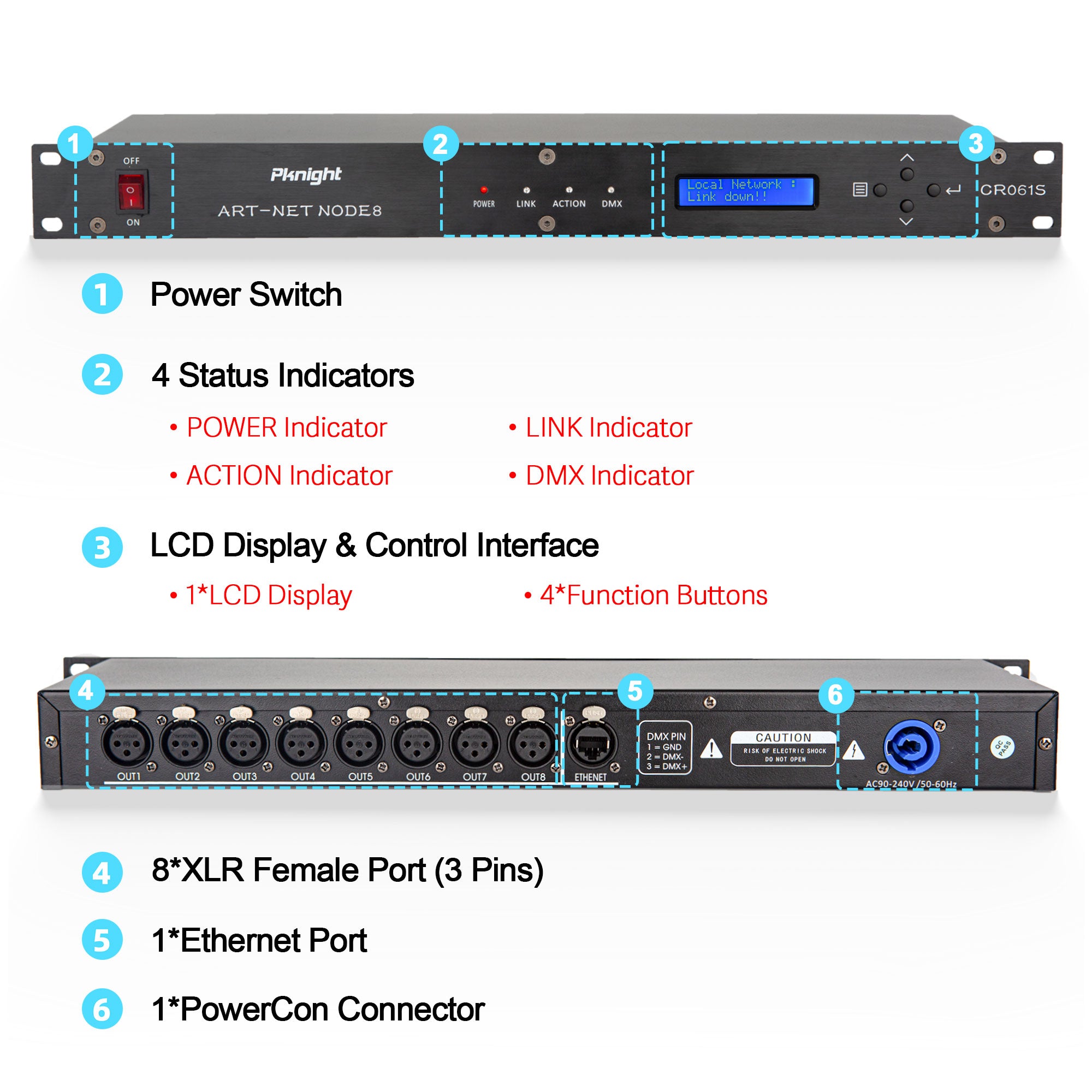

OverView

Four Status Indicators

1. POWER Indicator: Red light on when the device is powered.
2. LINK Indicator: Orange light on when connected to a network.
3. ACTION Indicator: Orange light on when receiving network signals.
4. DMX Indicator: Green light on when processing ArtNet signals

Note：If ACTION is lit but DMX is not, the signal received is not ArtNet and cannot be processed.

• Menu Button(leftmost button with the menu icon): Click to switch the menu option
• Backward or Minus Button(top button with the upward arrow): To go backward or minus in the selected function or parameter
• Forward or Plus Button(bottom button with the upward arrow): To go forward or plus in the selected function or parameter
• Enter Button(rightmost button with the curved arrow icon

1. Click to choose function or parameter Press
2. Hold for 3 seconds to save the settings
